aggregation.h File Reference

Data aggregation. More...

#include <stdbool.h>
#include <stddef.h>
#include <stdint.h>
#include <zephyr/kernel.h>
#include <zephyr/sys/util.h>
#include <nturt/sys/util.h>

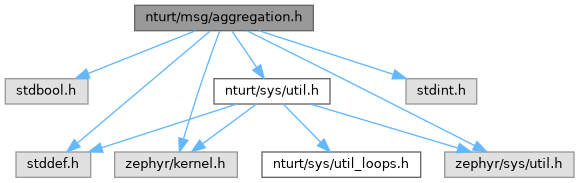

Include dependency graph for aggregation.h:

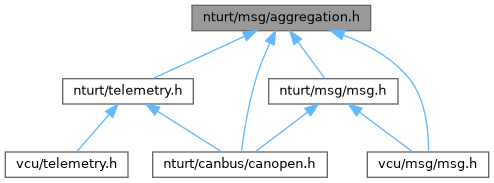

This graph shows which files directly or indirectly include this file:

Data Structures
struct	agg
	Data aggregation. More...
struct	agg_typed
	Data aggregation for a specific type. More...

Macros
#define	AGG_FLAG_ALWAYS_PUBLISH   BIT(0)
	Flag indicating the aggregation will always publish the data, even if no members are updated.
#define	AGG_MEMBER_FLAG_IGNORED   BIT(0)
	Flag indicating the aggregation will not monitor the update of the member.
#define	AGG_MEMBER_FLAG_OPTIONAL   BIT(1)
	Flag indicating the aggregation will not wait for the member to be updated before publishing. However, updates to the member will cold start the aggregation from dormant.
#define	AGG_INITIALIZER(_obj, _name, _period, _min_separation, _watermark, _flag, _publish, _user_data, ...)
	Static initializer for a dataa aggregation. Refer to AGG_DEFINE for detailed parameter descriptions.
#define	AGG_DEFINE(name, period, min_separation, watermark, flag, publish, user_data, ...)
	Define a data aggregation named _name to monitor the update of data. May be specified as static to limit the scope of the aggregation.
#define	AGG_MEMBER(member, ...)
	Specify a member of a struct to be monitored for aggregation. Used in AGG_TYPED_DEFINE.
#define	AGG_DATA_INIT(val, ...)
	Intial value of the data. Used in AGG_TYPED_DEFINE.
#define	AGG_TYPED_DEFINE(_name, _type, _init_val, _period, _min_separation, _watermark, _flag, _publish, _user_data, ...)
	Define a data aggregation named _name to monitor the update of members within a data type. May be specified as static to limit the scope of the aggregation.
#define	AGG_TYPED_UPDATE(agg_typed, type, member, value)
	Update a member of data.

Typedefs
typedef void(*	agg_publish_t) (struct agg *agg, void *user_data)
	Function to publish the data.
typedef void(*	agg_typed_publish_t) (const void *data, void *user_data)
	Function to publish the data.

Functions
void	agg_update (struct agg *agg, int idx)
	Signal the update of a data in aggregation.
void	agg_period_timer_cb (struct k_timer *timer)
	Timer callback function for periodic publishing.
void	agg_early_timer_cb (struct k_timer *timer)
	Timer callback function for tracking minimum separation time.
void	agg_work_cb (struct k_work *work)
	Work callback function for the bottom half of publishing, also used for late publishing.
void	agg_typed_publish (struct agg *agg, void *user_data)
	Publish function for data aggregation.

Detailed Description

Data aggregation.

Author

quantumspawner

Version

0.0.1

Date

2025-02-13

Copyright

Copyright (c) 2025 NTU Racing Team
