sensors.h File Reference

#include <stdbool.h>
#include <zephyr/device.h>
#include <zephyr/devicetree.h>
#include <zephyr/drivers/sensor.h>
#include "nturt/err.h"

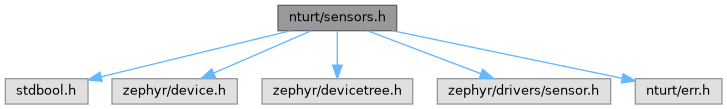

Include dependency graph for sensors.h:

Data Structures
struct	sensor_tol
	Sensor tolerant structure. More...

Macros
#define	SENSOR_TOL_INITIALIZER(NODE_ID, THRES, WEIGHT, ERR)
	Designated initializer for sensor_tol.
#define	SENSOR_TOL_DEFINE(NAME, NODE_ID, THRES, WEIGHT, ERR)
	Instantiate a sensor_tol.

Functions
int	sensor_tol_init (struct sensor_tol *tol)
bool	sensor_tol_is_ok (struct sensor_tol *tol)
int	sensor_tol_chan_read (struct sensor_tol *tol, enum sensor_channel chan, struct sensor_value *val)
	Read sensor data with tolerance. Sets error when error level reaches threshold. Does nothing if the sensor error is set and returns -ENODEV.
void	sensor_tol_report_fail (struct sensor_tol *tol)
	Report sensor failure.
void	sensor_tol_report_error (struct sensor_tol *tol)

Macro Definition Documentation

SENSOR_TOL_DEFINE

#define SENSOR_TOL_DEFINE	(		NAME,
			NODE_ID,
			THRES,
			WEIGHT,
			ERR )

Value:

  static struct sensor_tol NAME =                            \
      SENSOR_TOL_INITIALIZER(NODE_ID, THRES, WEIGHT, ERR)

Instantiate a sensor_tol.

Parameters

NAME	Name of the sensor tolerant read structure.
NODE_ID	Node ID of the sensor device.
THRES	Error level when greater or equal is considered an error.
WEIGHT	Error level increase of one sensor failure.
ERR	Error code corresponding to the sensor.

SENSOR_TOL_INITIALIZER

#define SENSOR_TOL_INITIALIZER	(		NODE_ID,
			THRES,
			WEIGHT,
			ERR )

Value:

  {                                                         \
      .dev = DEVICE_DT_GET(NODE_ID),                        \
      .thres = THRES,                                       \
      .weight = WEIGHT,                                     \
      .err = ERR,                                           \
      .level = 0,                                           \
  }

Designated initializer for sensor_tol.

Parameters

NODE_ID	Node ID of the sensor device.
THRES	Error level when greater or equal is considered an error.
WEIGHT	Error level increase of one sensor failure.
ERR	Error code corresponding to the sensor.

Function Documentation

sensor_tol_chan_read()

int sensor_tol_chan_read	(	struct sensor_tol *	tol,
		enum sensor_channel	chan,
		struct sensor_value *	val )

Read sensor data with tolerance. Sets error when error level reaches threshold. Does nothing if the sensor error is set and returns -ENODEV.

Parameters

tol	Sensor tolerant read structure.
chan	Sensor channel.
val	Sensor value.

Returns

0 if read successful, negative error code otherwise.

sensor_tol_init()

int sensor_tol_init

(

struct sensor_tol *

tol

)

sensor_tol_is_ok()

bool sensor_tol_is_ok

(

struct sensor_tol *

tol

)

sensor_tol_report_error()

void sensor_tol_report_error

(

struct sensor_tol *

tol

)

sensor_tol_report_fail()

void sensor_tol_report_fail

(

struct sensor_tol *

tol

)

Report sensor failure.

Parameters

tol	Sensor tolerant read structure.
