telemetry.h File Reference

Telemetry support. More...

#include <stddef.h>
#include <sys/queue.h>
#include <zephyr/kernel.h>
#include <zephyr/sys/iterable_sections.h>
#include <zephyr/sys/util.h>
#include "nturt/msg/aggregation.h"

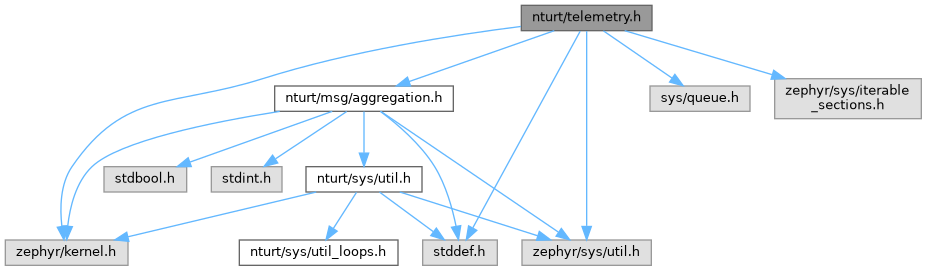

Include dependency graph for telemetry.h:

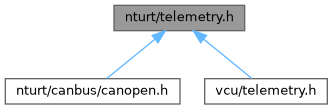

This graph shows which files directly or indirectly include this file:

Data Structures
struct	tm_group_data
	Telemetry group data. More...
struct	tm_data
	Telemetry data. More...
struct	tm_group
	Telemetry publishing group. More...

Macros
#define	TM_DATA_DECLARE(name, type)
	Declare a telemetry data, useful for header files.
#define	TM_DATA_DEFINE(_name, _type, _addr)
	Define a telemetry data.
#define	TM_ALIAS_DECLARE(name, alias)
	Declare a telemetry data alias, useful for header files.
#define	TM_ALIAS_DEFINE(_name, _alias, _addr)
	Define a telemetry data alias.
#define	TM_GROUP_DATA(data, ...)
	Specify a telemetry data to be aggregated and published by a telemetry group. Used in TM_GROUP_DEFINE.
#define	TM_GROUP_DEFINE(_name, _period, _min_separation, _watermark, _flag, _publish, _user_data, ...)
	Define a telemetry group to aggregrate and publish telementry data.
#define	TM_DATA_GET(name)
	Get the value of telemetry data using its name.
#define	TM_DATA_UPDATE(name, value)
	Update telemetry data using its name and value.

Typedefs
typedef void(*	tm_publish_t) (uint32_t addr, const void *data, size_t size, void *user_data)
	Function to publish the data.

Enumerations
enum	tm_data_type { TM_DATA_TYPE_NORMAL = 0 , TM_DATA_TYPE_ALIAS }
	Telemetry data type. More...

Functions
int	tm_data_get (uint32_t addr, void *value)
	Get telemetry data using its address and pointer to value.
int	tm_data_update (uint32_t addr, const void *value)
	Update telemetry data using its address and pointer to value.
void	tm_data_notify_lock (const struct tm_data *data)
	Notify the telemetry groups that this data has been updated. Must be called while holding the lock.
void	tm_group_copy (struct tm_group *group)
	Copy the data in the telemetry data to the group's publishing buffer.

Detailed Description

Telemetry support.

Author

quantumspawner

Version

0.0.1

Date

2024-12-27

Copyright

Copyright (c) 2024 NTU Racing Team
